Scope of application

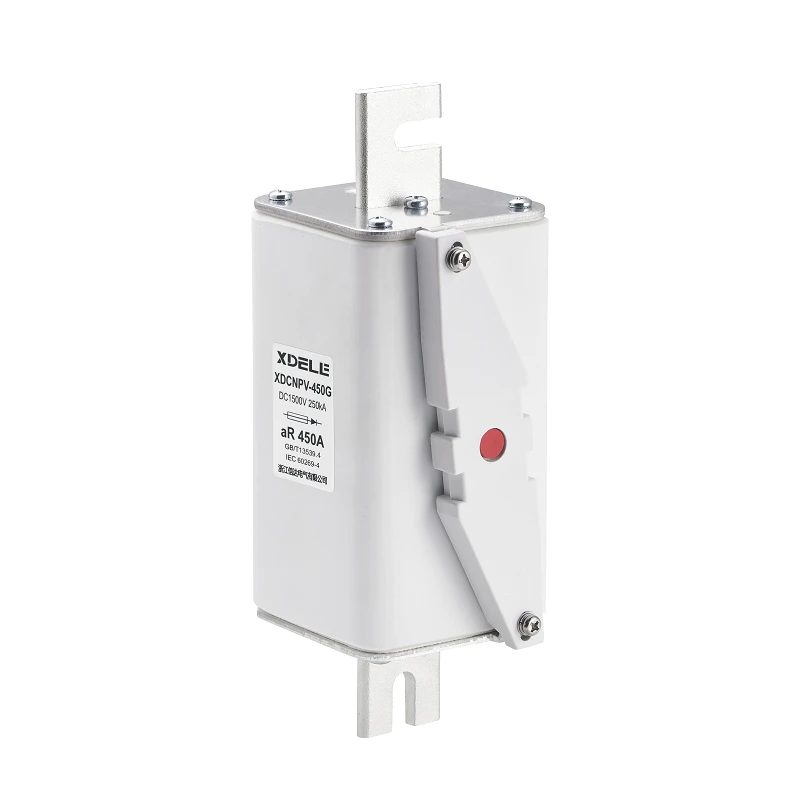

CDPV3-450G Eneray Storage Fuse Link is suitable for short-circuit and overload protection of a complete set of rectifier diodes, thyristors and their semiconductor devices in distribution lines with a rated voltage not exceeding DC1500V, rated current not exceeding 450A, and rated short-circuit capacity not exceeding 250kA.
This product is a partially protected fuse with strong current limiting and high breaking capacity, suitable for applications in industries such as energy storage and wind power. Can serve as short-circuit protection for energy storage systems, power systems, and other components and equipment.
|
Model |
Rated Voltage (V) |
Rated current(A) |
Rated Breaking Capacity[kA) |
Rated dissipationpowerfW] |
|
Fuse-Link |
DC1500V |
|||
|
XDCNPV-450G |
|
40, 50, 63, 80, 100, 125,160, 200, 250, 300, 315, 350, 400, 450 |
250 |
≤109 |
Certificate
CCC CE
Packing data
Outer packaging size: 33 * 29 * 29cm
Net weight: 21kg Gross weight: 23kg
total; 24 pieces, number of inner boxes: 1 piece
Fuses should be protected from rain and snow during transportation and storage. The free fall height of the entire box of fuses shall not exceed 250mm. The fuses shall
Store in a well ventilated and dry environment, with a stacking height of no more than six layers.
Unpacking and inspection of fuses
After opening the box, first check whether the nameplate of the fuse matches the markings on the packaging box, and then check whether the fasteners on the fuse are loose or not.
Detachment, check if there are cracks or fissures in the ceramic tube of the fuse, if there is any leakage of quartz sand inside the fuse, and if the fuse has been soaked in water.
If bubbles or invasions are found, the fuse cannot be put into use and the manufacturer should be contacted in a timely manner.
