How does the arc voltage of NH HRC fuses affect the circuit?
As a supplier of NH HRC fuses, I've come across many customers who are curious about how different factors related to these fuses impact their circuits. One aspect that often gets brought up is the arc voltage of NH HRC fuses and its effect on the circuit. Let's dig into this topic and break it down in a way that's easy to understand.
First off, let's understand what NH HRC fuses are. NH HRC stands for "High Rupturing Capacity" fuses, and they're designed to protect electrical circuits from overcurrents and short - circuits. They're widely used in industrial and commercial settings because they can handle high fault currents and interrupt them safely.
Now, what is arc voltage? When a fuse blows due to an overcurrent, an arc is formed between the fuse elements. The arc voltage is the voltage that appears across the arc during the interruption process. It plays a crucial role in the overall performance of the circuit.
Impact on Circuit Interruption
One of the most significant effects of arc voltage is on the circuit interruption process. A high arc voltage can help in quickly extinguishing the arc. When the arc voltage exceeds the system voltage, the current through the arc starts to decrease. This is because the arc acts as a high - resistance element in the circuit. As the current reduces, the energy dissipated in the arc also goes down, making it easier to interrupt the circuit.
For example, in a high - power industrial circuit, the high arc voltage of an NH HRC fuse helps in rapidly clearing a short - circuit fault. This is essential as quick interruption can prevent damage to other components in the circuit, such as transformers, motors, and switchgear.
On the other hand, if the arc voltage is too low, the arc may not be extinguished quickly. This can lead to prolonged arcing, which can generate a large amount of heat. Excessive heat can cause damage to the fuse itself and surrounding equipment. The insulation of nearby cables may be damaged, leading to further electrical problems.
Influence on System Voltage Regulation
The arc voltage of NH HRC fuses also has an impact on system voltage regulation. When a fuse blows and an arc is formed, the arc voltage adds to the existing system voltage. This can cause fluctuations in the voltage across other parts of the circuit.

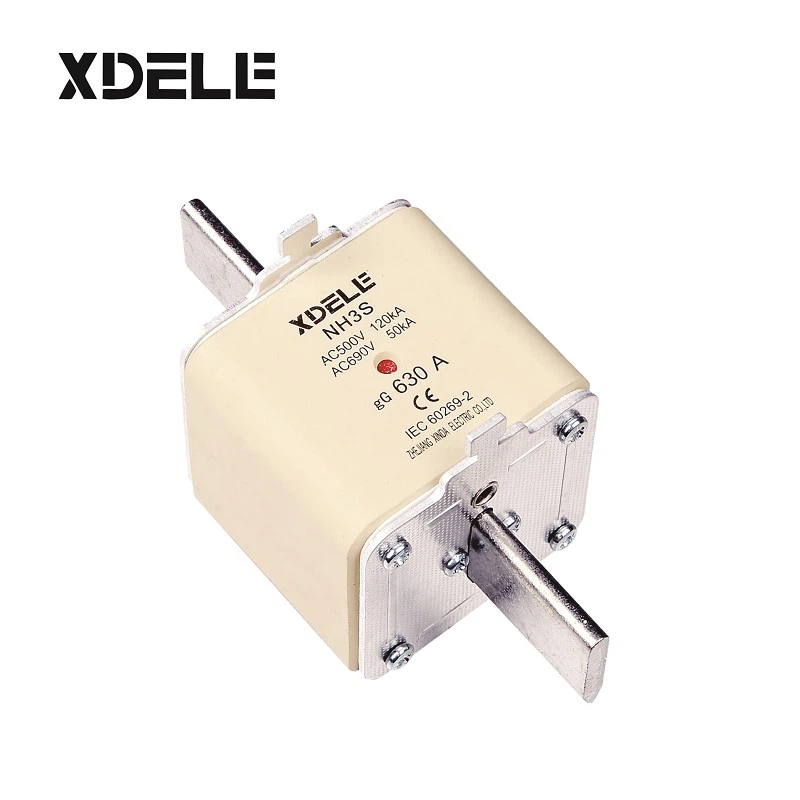

In a well - designed electrical system, these voltage fluctuations need to be minimized. The available NH HRC fuses with a stable arc voltage characteristic are crucial in this regard. For instance, our NH3 with Indicator Fuse Link is engineered to have a consistent arc voltage, which helps in maintaining a more stable system voltage during the interruption process. This is especially important for sensitive equipment that requires a stable power supply, such as computer servers and medical devices.
Effects on Fuse Selection
The arc voltage is a key factor when it comes to selecting the right NH HRC fuse for a particular circuit. Different circuits have different voltage and current requirements. A fuse with an arc voltage that is too high for a low - voltage circuit may cause unnecessary voltage spikes during interruption. Conversely, a fuse with a too - low arc voltage may not be able to interrupt a high - current fault effectively.
Let's say you're working on a medium - voltage industrial distribution circuit. You need to choose a fuse that can handle the high fault currents and also have an appropriate arc voltage. Our NH Copper Rod is a great option for such applications. It offers a suitable arc voltage for medium - voltage circuits, ensuring safe and reliable interruption.
Considerations for Parallel and Series Fuse Configurations
Sometimes, in complex electrical systems, fuses are used in parallel or series configurations. The arc voltage behaves differently in these setups.
In a parallel fuse configuration, the arc voltage between the fuses needs to be carefully balanced. If one fuse has a significantly higher arc voltage than the others, it may carry a disproportionate amount of the current during the interruption process. This can lead to overheating and premature failure of that fuse.
In a series fuse configuration, the total arc voltage is the sum of the arc voltages of individual fuses. This can be useful in high - voltage applications where a single fuse may not be able to handle the required arc voltage. Our NH1 with Indicator Fuse Link can be used in series combinations to achieve the desired arc voltage and interruption capability for high - voltage circuits.
Impact on Equipment Life
The proper management of arc voltage can have a positive impact on the life of electrical equipment in the circuit. By quickly and safely interrupting faults, the NH HRC fuses can prevent excessive electrical stress on other components. This reduces wear and tear on equipment such as generators, capacitors, and relays.
For example, in a power generation plant, where large amounts of electrical power are involved, the use of NH HRC fuses with appropriate arc voltage characteristics can help in extending the life of the generators. This not only saves on replacement costs but also reduces the downtime associated with equipment failures.
Conclusion and Call to Action
As we've seen, the arc voltage of NH HRC fuses has a far - reaching impact on the electrical circuit. It affects circuit interruption, system voltage regulation, fuse selection, and the life of electrical equipment. Choosing the right NH HRC fuse with the appropriate arc voltage is crucial for the safe and efficient operation of any electrical system.
If you're in the market for high - quality NH HRC fuses or have any questions about arc voltage and its impact on your circuit, don't hesitate to reach out. We're here to help you select the perfect fuse for your specific needs and ensure that your electrical system runs smoothly.
