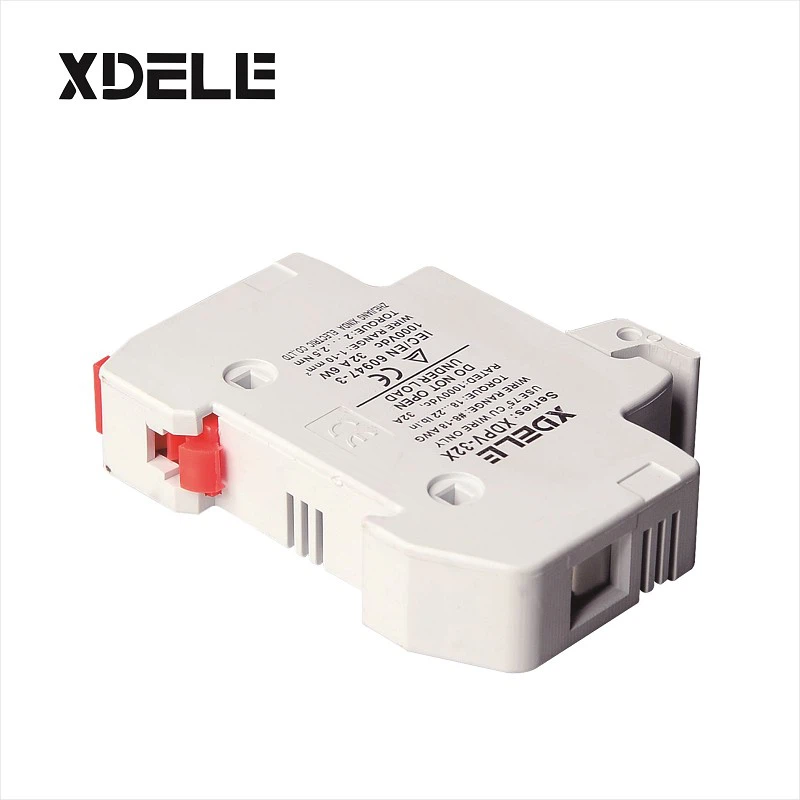

DC1000V Solar PV Fuse Base

Solar photovoltaic system DC1000V solar photovoltaic fuse holder. The XDPV-32X 1000VDC 10X38mm solar photovoltaic fuse holder is a specially designed DC1000V solar photovoltaic fuse holder, suitable for low overcurrent related to interruption and fault photovoltaic string arrays. This fuse is mainly used for circuit overload and short-circuit current protection in solar photovoltaic junction boxes, and can also be used for other DC circuits. DC1000V Solar PV fuse base according to IEC60947-3, rated current: 1-32A, rated voltage: DC 1000V, rated breaking capacity: DC 20KA, solar protection operation level gPV

Scope of application

DC1000V Solar PV fuse base according to IEC60947-3, rated current: 1-32A, rated voltage: DC 1000V, rated breaking capacity: DC 20KA, solar protection operation level gPV.

Model	Rated Voltage (V)	Rated current(A)		Rated Breaking Capacity[kA)	Rated dissipationpowerof fuse-link[w)


		Base	Fuse-Link	DC1000V
XDPV-32X	DC1000V	10*38	1.2.3.4.5.6.8.10,12,15.20,25, 30,32	20KA	≤3.5W

Certificate

CB CE

Packing data

Outer packaging size: 37 * 24 * 30cm

Net weight: 24kg Gross weight: 26kg

total; 200 pieces, number of inner boxes: 5 pieces

Place of Origin	Zhejiang, China
Rated Current	32A
Brand Name	XDELE
Model Number	XDPV-32
Use	LOW VOLTAGE
Safety Standards	IEC
Brand	XDELE
Product name	Photovoltaic System DC Fuse
Rated Voltage	DC 1000V
Rated Current	32A
Certificate	CE, TUV
Package	Standard Package

product-232-214

Model	A	B	C	D


XDPV-32X	80士2	61士2	78±2	18士2

FAQ

Q: How long is your delivery time?

A: The general delivery time is determined based on the actual quantity of the order, and if there is inventory, it will take 2-3 days.

Q: Do you provide samples? Is it free?

A: We will provide free samples with freight collect. But for some high-value samples, we need to collect sample fees.

Q: What is your transportation service?

A: We can provide ship booking, cargo consolidation, customs clearance, preparation of shipping documents, and bulk delivery services at the loading port.

Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer of fuses and fuse accessories. We directly trade our products with customers.

Q: Can you make our own packaging?

A: Yes, you just need to provide the packaging design and we will produce what you want. We also have professional designers who can help you with packaging design.

Hot Tags: dc1000v solar PV fuse base, China dc1000v solar PV fuse base manufacturers, suppliers, factory, DC1000V 10 X 38 Solar Fuse, DC1000V Solar PV Fuse Base, DC1000V Solar PV Fuse Holder, DC1500V 10 X 65 PV Fuse, fuse box for 12v solar system, PV FUSE BASE
