Scope of application

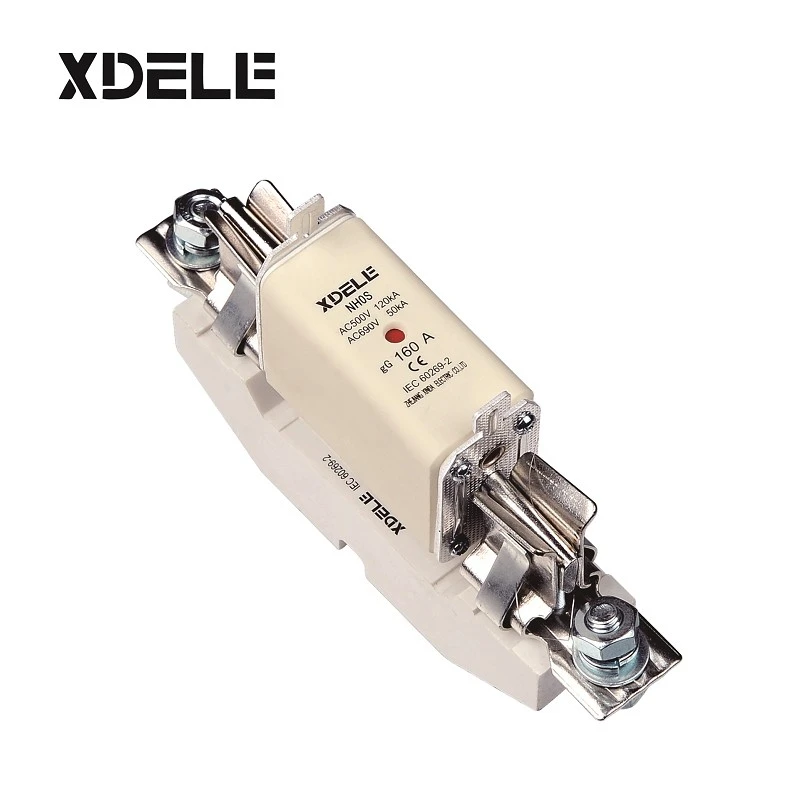

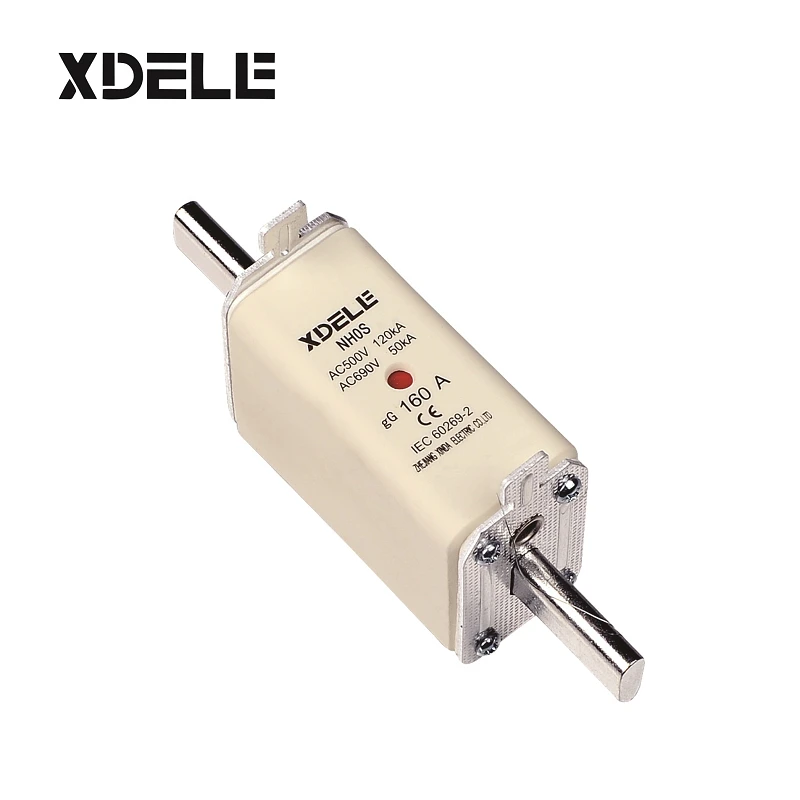

Scope of application: NH0 with indicator fuses These high breaking capacity fuses are designed for short-circuit protection of motors, transformers, and other loads with high surge currents. There is a standard visual indicator at the top and an indicator at the front.
The rated current of NH0 fuse with indicator can reach 100A, and the rated voltage can reach 690V.
|
Model |
Rated Voltage (V) |
Rated current(A) |
Rated Breaking Capacity[kA) |
Rated dissipationpowerof fuse-link[w) |
|||
|
Base |
Fuse-Link |
AC500V |
AC690V |
DC250V |
|||
|
RT16-0NH0 |
|
160 |
2,4,6,8,10,12,16, 20,25,32,40,50,63, 80,100 |
120 |
50 |
100 |
≤12W |
Certificate
CB CE
Packing data
Outer packaging size: 40 * 33 * 21cm
Net weight: 21kg Gross weight: 23kg
total; 90 pieces, number of inner boxes: 5 pieces
Here are some precautions:
Unpacking and inspection of fuses
After opening the box, the first thing to check is whether the nameplate of the fuse matches the markings on the packaging box, and then check whether the fasteners on the fuse are loose.
Or if it falls off, check if there are cracks or fissures in the ceramic tube of the fuse, if there is any leakage of quartz sand inside the fuse, and if the fuse has been exposed to water.
If immersion or invasion occurs, the fuse cannot be put into use and the manufacturer should be contacted in a timely manner.
