Selecting the right fuses for a solar panel system is crucial to ensure the safety and efficiency of your setup. As a fuses supplier, I've seen firsthand the importance of making the correct choices. In this blog, I'll walk you through the key factors to consider when picking fuses for your solar panel system.
Understanding the Basics of Fuses in Solar Panel Systems
First off, let's talk about what fuses do in a solar panel system. Fuses are like the guardians of your electrical circuit. They're designed to break the circuit when there's an overcurrent situation, which could be caused by things like short - circuits or excessive current flow. This helps prevent damage to your solar panels, inverters, and other components.
In a solar panel system, there are typically two main types of fuses: DC fuses and AC fuses. DC fuses are used on the direct current side of the system, between the solar panels and the inverter. AC fuses, on the other hand, are used on the alternating current side, usually after the inverter.
Factors to Consider When Selecting Fuses
1. Current Rating
The current rating of a fuse is one of the most important factors. It determines the maximum amount of current that can flow through the fuse without it blowing. You need to choose a fuse with a current rating that's slightly higher than the normal operating current of your solar panel system.
To calculate the normal operating current of your solar panels, you can use the formula: (I = \frac{P}{V}), where (P) is the power output of the solar panel in watts and (V) is the voltage. For example, if you have a solar panel with a power output of 300W and a voltage of 24V, the current (I=\frac{300}{24}=12.5A). In this case, you might choose a fuse with a current rating of 15A.
2. Voltage Rating
The voltage rating of the fuse must be equal to or greater than the maximum voltage in the circuit. In a solar panel system, the voltage can vary depending on the number of panels connected in series. For a typical residential solar panel system, the DC voltage can range from 24V to 600V, while the AC voltage is usually 120V or 240V.
If you use a fuse with a voltage rating that's too low, it might not be able to interrupt the circuit properly during an overcurrent event, which could lead to dangerous situations.
3. Interrupting Rating
The interrupting rating, also known as the short - circuit current rating, is the maximum amount of current that the fuse can safely interrupt without causing an explosion or other damage. In a solar panel system, there could be high short - circuit currents, especially if there's a fault in the wiring or a component.
You need to choose a fuse with an interrupting rating that's high enough to handle the potential short - circuit currents in your system. This information can usually be found in the system's electrical specifications or by consulting an electrician.
4. Temperature Rating
Solar panels can get quite hot, especially in sunny and hot climates. The temperature can affect the performance of the fuses. You should choose fuses with a temperature rating that can withstand the operating temperatures of your solar panel system.
Most fuses are rated for a certain temperature range, and if the temperature exceeds this range, the fuse might blow prematurely or not function properly.
Types of Fuses Suitable for Solar Panel Systems
Screw Fuses
Screw fuses are a popular choice for solar panel systems. They're easy to install and replace. We offer a variety of screw fuses that are suitable for different solar panel system requirements. For example, the R024 E16 DI Screw Fuse is a great option for many residential solar panel setups. It has a reliable current - interrupting performance and is designed to handle the typical currents and voltages in these systems.
Another option is the D01 RL6 - 16 Screw Fuse. This fuse is known for its high - quality construction and is suitable for both small and medium - sized solar panel systems.

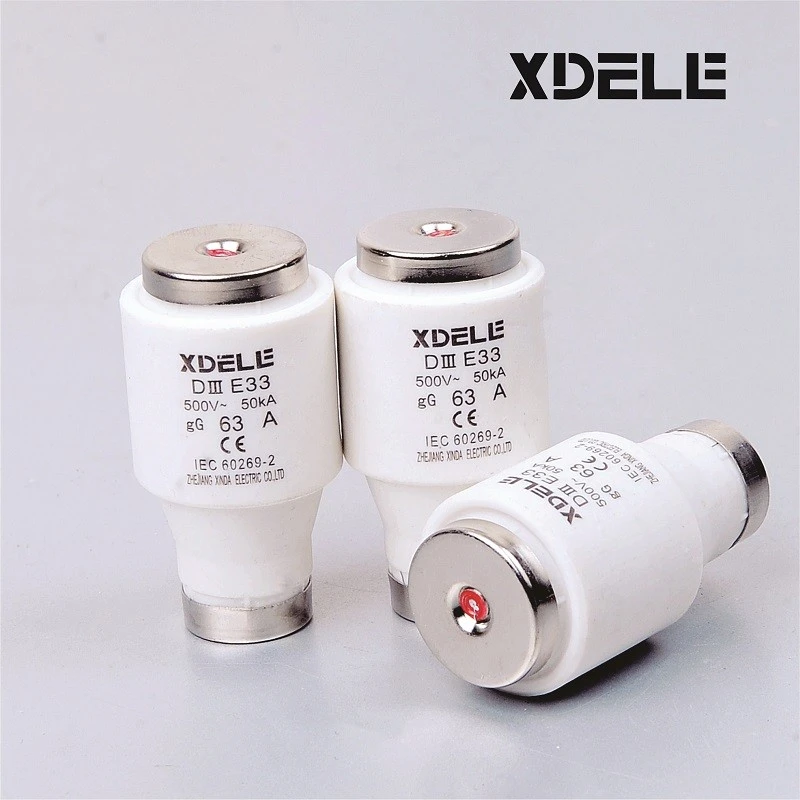

If you have a larger solar panel system with higher currents and voltages, the R022 E33 DIII Screw Fuse might be a better choice. It's designed to handle more demanding electrical loads.
Blade Fuses
Blade fuses are also commonly used in solar panel systems, especially in automotive or small - scale solar applications. They're compact and easy to install in fuse blocks. Blade fuses come in different sizes and current ratings, so you can choose the one that best suits your system.
Installation and Maintenance of Fuses in Solar Panel Systems
Once you've selected the right fuses for your solar panel system, proper installation is crucial. Make sure to follow the manufacturer's instructions carefully. When installing fuses, always turn off the power to the system to avoid electrical shock.
Regular maintenance of the fuses is also important. Check the fuses periodically to see if they're blown or damaged. If a fuse has blown, replace it with a new one of the same type and rating.
Conclusion
Selecting the right fuses for your solar panel system is not a decision to be taken lightly. It requires careful consideration of factors such as current rating, voltage rating, interrupting rating, and temperature rating. As a fuses supplier, we're here to help you make the best choices for your system.
If you're in the process of setting up a solar panel system or need to replace fuses in an existing one, don't hesitate to reach out. We have a wide range of fuses to meet your specific needs, and our team of experts can provide you with the guidance you need. Whether you're a homeowner, a solar installer, or a business owner, we're ready to assist you in ensuring the safety and efficiency of your solar panel system.
References
- Solar Energy International. "Solar Electric Systems: A Homeowner's Guide."
- National Electrical Code (NEC) for guidelines on electrical safety in solar panel systems.
